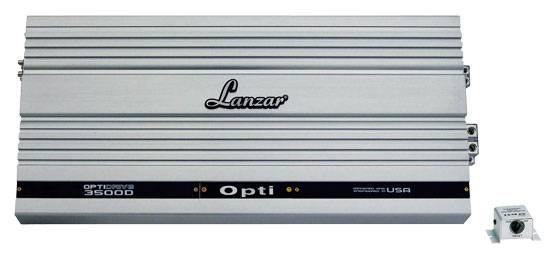

Electronics Gear- Electronics,Computer Sales and Service: Lanzar OPTI3500D Optidrive Series 3500W Mono Block Digital Amplifier, Car Audio & Video, OPTI3500D

3500 Watt Mono Block Subwoofer Amplifier

1800 Watts RMS 4 Ohms

2000 Watts RMS 2 Ohms

2500 Watts RMS 1 Ohms

3500 Watts RMS 0.5 Ohms

0.5 Ohm Stable

MOSFET Power Supply

PWM (Pulse-Width-Modulated) System

Double Sided Epoxy PCB Circuit Board

Nickel Plated RCA Inputs

Custom Terminal Block for Speaker Connections

Thermal, Overload & Short Protection

Variable Low Pass Filter (50Hz-250Hz-24dB/Octave)

Variable Subsonic Filter (15Hz-40Hz-24dB/ Octave)

Phase Control 0-180 degree

THD 1 Watt, 4 Ohm: 0.1%

Signal To Noise Ratio: 90dB

Input Sensitivity: 200mV-8V

Remote Bass Control

Input Impedance: 10K Ohms

Soft Turn On/Off

Heavy Duty Power Coated heatsink

Dimesnions: 10.08''W x 2.12''H x 23.3''L
