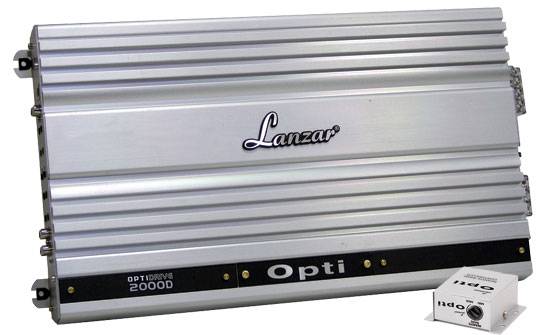

Electronics Gear- Electronics,Computer Sales and Service: Lanzar OPTI2000D Optidrive Series 2000W Mono Block Digital Amplifier, Car Audio & Video, OPTI2000D

700 Watts RMS Power 4 Ohms

1100 Watts RMS Power 2 Ohms

1600 Watts RMS Power 1.3 Ohms

2000 Watts Max Power 0.5 Ohms

4000 Watts Bridge Max Power 2 Ohms

Mono Block Subwoofer Amplifier

0.5 Ohm Stable

MOSFET Power Supply

PWM (Pulse-Width-Modulated) System

Double Sided Epoxy PCB Circuit Board

Gold Plated RCA Inputs

Custom Terminal Block for Speaker Connections

Thermal, Overload Short Protection

Remote Bass Control

Soft Turn On/Off

THD 1Watt/4 Ohm: 0.1%

S/N Ratio: 90dB

Frequency Response: 15Hz - 150Hz (+/-3dB)

Damping Factor 20Hz/4 Ohms: 400

Low Pass Filter: 50Hz-150Hz, 24dB/Octave

Variable Subsonic Filter: 15Hz-40Hz, 24dB/Octave

Variable Bass Boost: 0 to 18dB

Variable Phase Control: 0 to 180

Input Sensitivity: 200mV ~ 8V

Input Impedance: 10k Ohm

Line Output Impedance: 100 Ohm

Fuse Rating: 30A x 6

Dimensions: 10.08'' (W) x 2.12'' (H) x 19.1'' (L)
