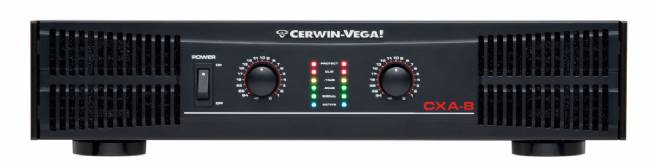

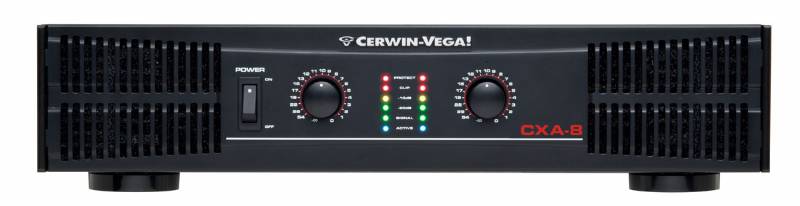

Cerwin Vega Pro Audio CXA-8 Power Amplifier - 900 W RMS /2 Channel
Cerwin Vega Pro Audio CXA-8 Power Amplifier - 900 W RMS /2 Channel

The Cerwin-Vega! CXA-Series high performance stereo and bridgeable power amplifiers are for those that want to sound like a pro! These home-use versions of the renowned Cerwin-Vega! Professional series amplifiers. The same capability for shock and awe, but with input/output connections and a form factor suited for performing at home versus on stage.

Features
  • Power ratings up to 1800 watts – run in stereo or bridged
  • Professional quality design and reliability
  • Flow-through cooling design prevents overheating
  • Defeatable limiter and high pass filter per channel
  • Detented 21-position input level control knobs
  • Front panel LED indication of power, clip protect and signal status
Performance Data:
  • Output Power (RMS): Stereo Both Channels Driven
    8 ohms: 400W
    4 ohms: 600W
    2 ohms: 900W
  • Output Power (RMS): Bridged Mono
    8 ohms: 1200W
    4 ohms: 1800W
  • Signal to Noise Ratio (20 Hz - 20k Hz): 102 dB
  • Distortion (SMPTE-IM): 0.01%
  • Voltage Gain: 33 dB
  • Output Circuitry: Class AB
  • Current Consumption: 240 Vac
    @ 1/8 power @ 4 ohms 4.4 amps
    @ 1/3 power @ 4 ohms 6 amps
    @ Full power @ 4 ohms 9.5 amps
  • Distortion
    20 Hz - 20k Hz @ 1/2 Power 0.01%
    1k Hz @ Full Power 0.10%
Frequency Response:
  • +/- 0.5 dB: 20 Hz - 20 kHz
  • +/- 3 dB: 5 Hz - 60 kHz
  • Damping Factor (400 Hz): 280
  • Input Impedance: 15k ohm Un-balanced / 30k ohm balanced
  • Input Clipping: 22 dBu (10 Vrms)
  • Cooling: Continuously variable speed fan, front to rear

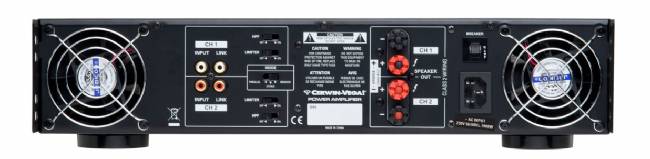

Connectors:
  • Input: Unbalanced RCA input and link out
  • Output: 5-way binding post
Controls:
  • Front: AC power switch / Channel 1 & 2 volume
  • Rear: HPF Switch / Limiter Switch / Mode Selector Switch
  • Indicators: Power On: Light Blue / Signal: Dark Blue / Limit-Clip: Red
  • Power Requirements: 240 Vac 50 Hz
  • Protection: Short Circuit / Thermal / Current Limit resetable breaker / DC offset / Current In-Rush / RF Protection / On-Off Mute
Weight
39.6 lbs.
  18 Kg
Dimensions (HxWxD)
18.9 X 3.4 X 16.5

482 mm X 88 mm X 420 mm



DISCONTINUED ITEM, DISPLAYED FOR REFERENCE PURPOSES ONLY.




Email Friend

Product Question
List Price: $999.99
Your Price: $749.00
Out of Stock
