Electronics Gear- Electronics,Computer Sales and Service: Xantech ML95 Micro Link Universal IR Receiver, Consumer Video, XAN1221

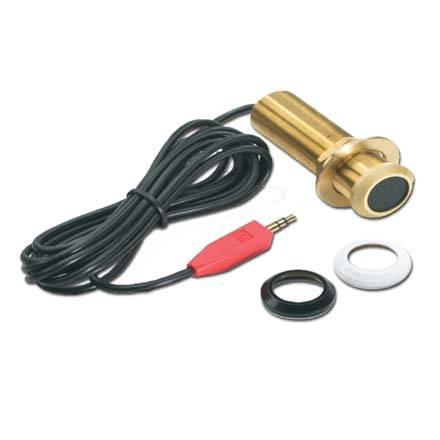

Model ML95 Micro Link Universal IR Receiver is a small peep-hole style infrared repeater assembly. The Micro Link IR Receiver is equipped with a 7ft cable and a 3.5mm stereo mini plug, which is plugged directly into the “IR RCVR” jack on the connecting block, such as the models 789-44, CB60, and 791- 44. The Micro Link IR Receiver is primarily intended for use in installations where the connecting block is within reach of its 7ft cable – as when installing the Micro Link IR Receiver in a cabinet where the controlled equipment is behind closed doors. Small size: mounts in 1/2in diameter hole, 2in deep. Works in normal 3-wire mode (12VDC, IR, GND).

Infrared modulation frequency bandwidth: 25 – 60 kHz
IR reception range: Up to 120 feet, depending on remote control output strength and ambient conditions
Reception angle: 55 degrees off axis for 50% range reduction
Cable requirements: 3-conductor. Use 24 gauge up to 200ft, 22 gauge up to 600ft, 20 gauge up to 2000ft, 18 gauge up to 5000ft – unshielded OK
Max. transmission length: 1 mile using 18 gauge wire
Maximum current output: 100mA
Drives IR emitters through Xantech Connecting Blocks, Controllers, etc.
Dimensions: 0.7in diameter x 2.2in deep
Power requirements: +12VDC, 20mA
