Electronics Gear- Electronics,Computer Sales and Service: Xantech DL95 Universal Dinky Link IR Receiver, Consumer Video, XAN1213

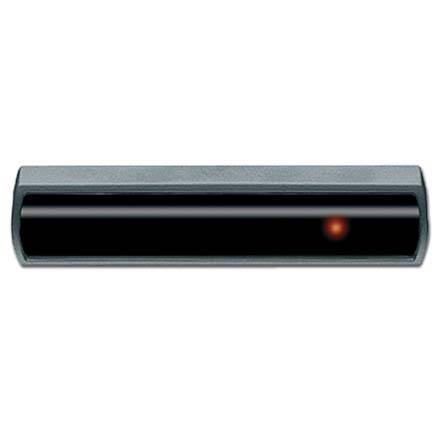

Model 95 Universal Dinky Link IR Receiver. These small IR receivers have been designed for mounting in very small spaces. They may be mounted under shelf edges, cabinet ledges, in wall speakers, etc. – anywhere an inconspicuous appearance is desired. The high sensitivity of these receivers allows placement behind speaker grilles and still receive IR commands up to 120 feet away (Depending on remote control output strength and ambient conditions.)

Wire channel for clean installation
System testing red-talk-back LED
Includes 3-Terminal Block for easy extension to remote room locations
Infrared carrier frequency bandwidth: 25 - 60 kHz
Reception range: Up to 120 feet. (* Depending on remote control output strength and ambient conditions.)
Reception angle: +/- 60 degrees
Max. Transmission length: 1 mile using 18 gauge wire
Maximum current output: 100mA
Drives IR emitters through Xantech Connecting Blocks, Controllers, etc.
Dimensions: 2.55” x 0.55” x 0.35” (65mm x 14mm x 9mm)
Power requirements: +12VDC, 10mA
