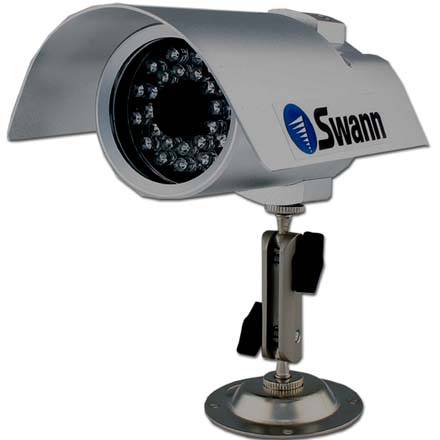

Model SW-C-MDNC Maxi Day/NightCamDay & Night CCD Camera with Infrared Night Vision. Fitted with a powerful 6mm lens, this camera provides 420 TV lines for high CCD image resolution and 65ft infra-red night vision. Features a weather-resistant, vandal-proof aluminum case with hood. Plugs into any DVR, VCR, TV or Swann Security monitor. Mounts easily to ceilings or walls.

Maxi Day/Night Cam™
Camera hood and stand
(1) 32ft BNC cable
(1) BNC to RCA adapter
Power adapter
Mounting screws and plugs
Quick Start Guide
(4) Theft deterrent stickers

Image Sensor 1/4" CCD
Video Quality 420 TV Lines
Number of Effective Pixels 510 x 492 (NTSC), 628 x 582 (PAL)
Minimum Illumination 0 Lux (IR on)
Day/Night Mode Color during day / switches to B&W at night
White Balance Automatic
Signal / Noise Ratio > 48dB
Electronic Shutter 1/60 - 1/100,000 NTSC; 1/50 - 1/100,000 PAL
Gain Control Automatic
Backlight Compensation
Lens 6mm
Viewing Angle 33°
Number of infrared LEDs 24
Infra-Red Wavelength 850nm
Night Vision Distance 65ft / 20m
Infra-Red LED Life 10,000 hours
Operating Power DC 12V
Operating Temperature -20° C ~ 60° C; -4° F ~ 140° F
Body Construction Aluminum
Dimensions - Camera 2.8" x 2.4" x 5.0"
Weight - Camera 1.1lbs
Dimensions – Stand 5.3" x 3.4" x 3.4"
Weight – Camera & Stand 1.3lbs
Cable Length 32ft
