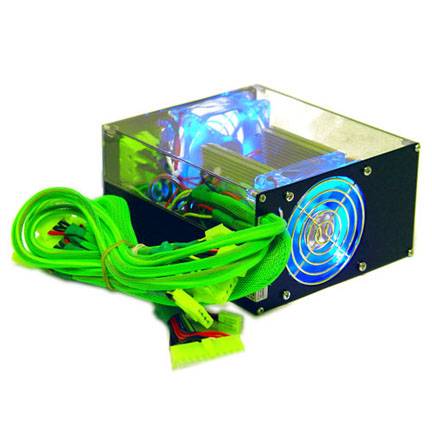

Apevia 500W ATX See-Through Aluminum Power Supply
Apevia 500W ATX See-Through Aluminum Power Supply
APEVIA (Aspire) 500W See-Through Aluminum Power Supply-Black
APEVIA 500W See-Through Aluminum Power Supply-Black



APEVIA 500W See-Through Aluminum Power Supply-Black



APEVIA 500W See-Through Aluminum Power Supply-Black

PRODUCT FEATURE
  • Aluminum casting for best cooling
  • See-through acrylic cover for attractiveness
  • Appealing colorful components
  • Excellent ventilation:2 x 80mm uv blue LED fans
  • Super silent:1 x fan speed controller optimizing cooling while reducing noise
  • Wire management:fully sleeved cables to avoid clutter and improve airflor
  • Supports ATX Intel 12V V1.2 and AMD systems
  • All connectors, switch and wire sleeves are uv green reactive
  • Protection:Short circuit/ Under voltage/ Over voltage/ Over current/ Over power/ Electric-shock free protection
  • Safety approval:UL, CSA, FCC, CE, CB, TUV
  • High efficiency and reliability
  • Low noise and ripple
  • 100% Burn-in test/ Hi-pot test/ Viibration test/ Leak Current test
  • MORE...

    This gorgeous Apevia aluminum 500w see-through power supply is the most spectacular power supply you can ever find in the market. Masterfully designed and expertly engineered, this power supply features 500W of power housed in lightweight aluminum chassis combining sufficient cooling, quiet and extraordinary performance in a stunning stylish design. Supports Pentium 4 and AMD CPUs. The power supply has two built-in 80mm blue UV reactive LED fans for best cooling and a fan speed adjustor to control the fan speed and reduce the noise level while maximizing its cooling capacity. The power supply comes with loads of phenomenal features, including the two blue UV reactive fans, UV reactive plug, switch, adapters and UV reactive wire sleeves. The blue light shines through its acrylic cover showing all the vibrant colors of the power supply when turned on, it is most eye-catching beauty. Short Circuit/ Under Voltage/ Over Voltage/ Over Current/ Over Power Protection functions ensure and stabilize your system. Made of the fire-resistant quality components, Apevia has undergone the most rigorous testing in the industry to offer the best cooling, reliability, durability and performance for today's heavily loaded PC. This power supply is a state-of-art cutting edge innovation for gamers and PC enthusiasts.



    SPECIFICATION
    Model No. ATX-AS500W-BK
    Max. Power 500W
    Material Aluminum
    Color Black
    Switches ATX Logic on-off
    additional power rocker switch 115/230 Volt selector switch
    Input
  • Voltage ranges:103-132VAC or 206-264VAC RMS switch selectable
  • Input freguency:50-60Hz
  • Input current:10A for 115VAC, 5A for 230VAC
  • Inrush current:<50A @115VAC, <100A @230VAC
  • Output
    AC INPUT
    115V/230V - 60/50Hz
    DC OUTPUT
    +3.3V
    +5V
    +12V
    -12V
    -5V
    +5VSB
    500W
    Torrance
    ±5% +5%-1% ±10% ±10% ±10% ±5%
    Max curr
    28A
    30A
    34A
    0.8A
    0.3A
    2.0A
    Normal current
    20A
    24A
    25A
    0.5A
    0.5A
    2.0A
    Min curr
    0.3A
    0.1A
    0A
    0A
    0A
    0A
    Ripple & noise
    60mV
    80mV
    120mV
    120mV
    100mV
    80mV
    Line regulation
    ±1%
    ±1%
    ±1%
    ±1%
    ±1%
    ±1%
    Load regulation
    ±5%
    ±5%
    ±10%
    ±10%
    ±10%
    ±5%
    +5V & 3.3V Combine
    200W Max
    +12V, +5V & +3.3V Combine
    480W Max
    Total Output Power
    500W Max
    Connectors
  • 1 x Main Power (20 + 4 pin)
  • 1 x 12V (P4)
  • 2 x SATA
  • 8 x Peripheral
  • 2 x Floppy
  • Electrical
  • Efficiency:>70% under max range load
  • Rise time: <20ms
  • Hold up time: >10ms at full load
  • Overshoot: >10%
  • Leakage current:<3.5mA @240VAC
  • P.G. Signal:100-500ms
  • Protection Short-circuit/ Over current/ Over voltage/ Over power/ Under voltage/ Electric shock free
    Environment
  • Operation temperature:0˚C to 40˚C
  • Operation humidity:20% to 90% RH
  • Operation altitude:up to 10,000 ft
  • EMI/RFI FCC class B, CISPR22 class, BSMI
    Safety CB IEC 950/ TUV EN 60950/ UL 1950/ CSA 950
    PFC Optional
    Cooling Forced air ventilation by 2 x 80mm UV blue LED fan
    Fan speed controller yes
    MTBF 100,000 hours at full load/25˚C
    Dimension 150mm x 170mm x 85mm (5.9" x 6.7" x 3.4") - W x L x H
    Weight 5.0 lbs
    Package 8 pcs/carton
    Cu'ft 2.70 (per carton)

    Email Friend

    Product Question
    List Price: $99.99
    Your Price: $79.00
