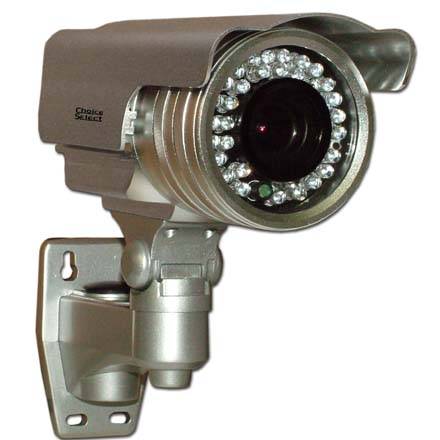

Model CHO3012 Weather Resistant Infrared video camera provides superb image performance even in poor lighting conditions. Features IR distance of 30 meters and 420 lines of resolution.

SONY 1/3" CCD
Effective Picture Elements: NTSC 510×492
Horizontal Resolution: 420 TV Lines
S/N Ratio: >48dB
Clock Frequency: NTSC 19.0699MHz
Scanning System: 2:1 interlace
Min Illumination: 0 Lux (with IR LED ON)
Sync. System: Internal, Negative sync.
Auto Electronic Shutter: NTSC:1/60s~1/100,000s
Gama Characteristic: 0.45
IR Project Distance: 30m (with 36 unit IR LED)
IR Status: <10 Lux by CDS
IR Power On: CDS Auto Control
Video Output: 1Vpp, 75 ohm
Auto Gain Control: Auto
Power/Current: 12V DC(+/-10%) / 400mA
Lens: 4-9mm (optional)
Water Resistance: IP66
Dimensions: 5.75in W x 3.25in H x 3.15in D
Weight: 2.2 lbs
