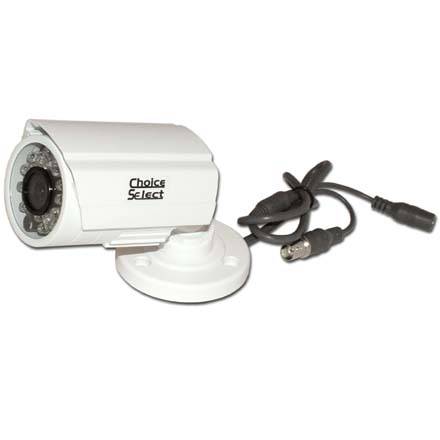

Model CHO3011 color camera employs the latest SONY technology optical components. This day/night, indoor/outdoor model features a water-resistant housing. It will provide rich color, high definition pictures. Easy to install and convenient to use, it will adapt to most CCTV systems. It features and IR distance of 20 meters and 420 TV lines of resolution. Includes power adapter and user guide.

SONY 1/3" CCD
Effective Picture Elements: NTSC:510×492, PAL:500×582
Horizontal Resolution: 420 TV Lines
S/N Ratio: >48dB
Clock Frequency: NTSC:19.0699MHZ, PAL:18.3125MHZ
Scanning System: 2:1 interlace
Min Illumination: 0 Lux (with IR LED ON)
Sync. System: Internal, Negative sync.
Auto Electronic Shutter: NTSC:1/60s~1/100,000s, PAL:1/50s~1/100,000s
Gama Characteristic: 0.45
IR Project Distance: 20m (with 24 unit IR LED)
IR Status: <10 Lux by CDS
IR Power On: CDS Auto Control
Video Output: 1Vpp, 75 Ohm
Auto Gain Control: Auto
Power/Current: 12V DC(+/-10%) / 120mA
Lens: 3.6mm
Dimensions: 2in W x 3.34in H x 2.36in D
Weight: 1.5 lbs
Storage Temperature: -30~ +60°
Operating Temperature: -10~ +45°
