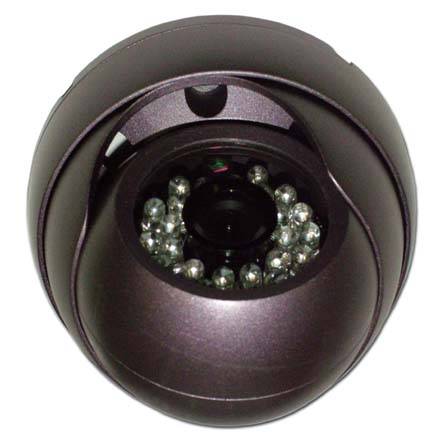

Model CHO3003 Aluminum dome video camera provides superb image performance even in poor lighting conditions. Features IR distance of 20 meters and 420 lines of resolution.

SONY 1/3" CCD
Effective Picture Elements ( H*V ): NTSC:510×492, PAL: 500×582
Horizontal Resolution: 420 TV Lines
S/N Ratio: >48dB
Clock Frequency: NTSC:19.0699 MHZ, PAL: 19.3125MHZ
Scanning System: 2:1 interlace
Minimum Illumination: 0 Lux (with IR LED ON)
Synchronous System: Internal, Negative sync.
Auto Electronic Shutter: NTSC:1/60s~1/100,000s PAL:1/50s~1/100,000s
Gama Characteristic: 0.45
IR Project Distance: 20 Meters
IR Status: Under 10 LUX by CDS
IR Power On: CDS Auto Control
Video Output: 1 Vpp, 75 O
Auto Gain Control: Auto
Power/Current: 12VDC(+/-10%)/300mA
Lens: 3.6 mm /F 2.0 (optional: f 2.5 / 6.0 / 8.0 / 12mm)
Dimensions: 3.70" Diameter x 2.70" H
Weight : .99 lbs
Storage Temperature: -22 F°~ +140 F°
Operating Temperature: -14 F°~ +113 F°
