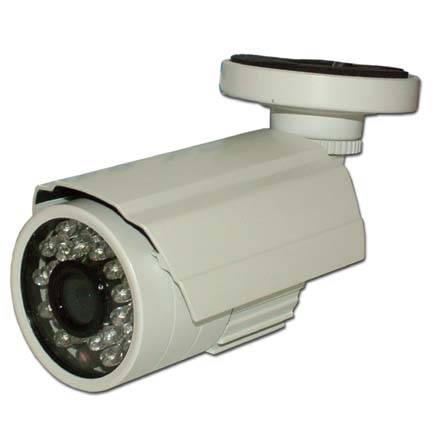

Model CHO3002 Weather Resistant Infrared video camera provides superb image performance even in poor lighting conditions. Features IR distance of 20 meters and 540 lines of resolution.

SONY 1/3" CCD
Effective Picture Elements ( H*V ): NTSC: 811×508 / PAL: 795×596
Horizontal Resolution: 540 TV Lines
S/N Ratio: >48dB
Clock Frequency: NTSC:19.0699 MHZ / PAL:18.9375MHZ
Scanning System: 2:1 interlace
Minimum Illumination: 0 Lux (with IR LED ON)
Synchronous System: Internal, Negative sync.
Auto Electronic Shutter: NTSC:1/60s~1/100,000s, PAL:1/50s~1/100,000s
Gama Characteristic: 0.45
IR Project Distance: 20 Meters
IR Status: Under 10 Lux by CDS
IR Power On: CDS Auto Control
Video Output: 1 Vpp, 75 O
Auto Gain Control: Auto
Power/Current: 12VDC(+/-10%)/ 300mA
Lens: 3.6 mm
Dimensions: 1.97" W x 3.35" H x 2.36" D
Weight: 1.54 lbs
Storage Temperature: -22 F°~ +140 F°
Operating Temperature: -14 F°~ +113 F°
