Cerwin Vega CV-5000 HP Pro Power 5000watt Amplifier
Cerwin Vega CV-5000 HP Pro Power 5000watt Amplifier

High performance professional power amplifier.

This field proven amp design is the most muscular yet in the CV Series and is a perfect match for Cerwin-Vega's largest and loudest Passive Speakers and Folded Horns. A true powerhouse, the CV-5000 is capable of driving the most demanding speaker applications including Cerwin-Vega's TS-42 Folded Horn Sub.

The 3 RU enclosure is compact and feature-laden, with a design that includes a high-efficiency, variable-speed fan tunnel cooling system, complete LED monitoring of the amplifier's status and comprehensive protection circuitry that guards vital components.

Cerwin-Vega CV-5000 High Performance Professional Power Amplifier Features:

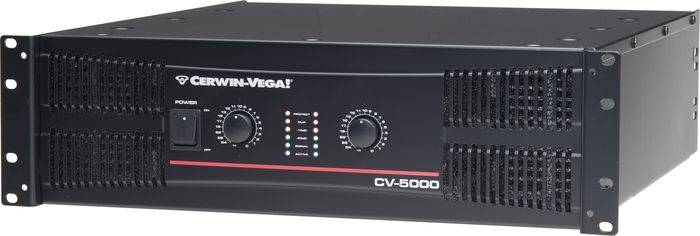

  • Front
  • Volume control that features a 21 detent potentiometer for each channel

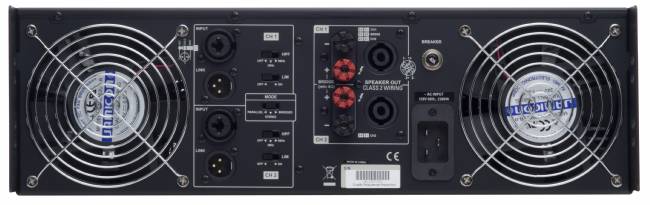

    Rear
  • Mode selector switch (Parallel/Stereo/Bridged Mono)
  • HPF: On/Off switch for each channel
  • Limiter: On/Off switch for each channel

    Connectors
  • Input: Combo jack electronically balanced 1/4" & XLR male for input link
  • Output: 5-way binding post & Speakon connector for each channel

    Indicator: Signal, -20dB, -10dB, 0dB, Clip, Protect & Active
  • Protection: Short Circuit, Thermal, Current Limit, DC Offset,
  • Current Inrush, RF Protection, Turn On / Turn Off Mute
  • Cooling: Variable speed fan forced cooling

Cerwin-Vega CV-5000 High Performance Professional Power Amplifier Specifications:

  • Rated Power:
  • Stereo @ 8 ohms 1100 W
  • Stereo @ 4 ohms 1800 W
  • Stereo @ 2 ohms 2500 W
  • Bridge @ 8 ohms 3600 W
  • Bridge @ 4 ohms 5000 W
  • Input Sensitivity (8 ohms 1.42V (+5.3dB) Input Impedance 20 k ohms Balanced / 10t k ohms Unbalanced
  • Frequency Response (+/-3.0 dB) 5Hz – 50kHz
  • Class H , 3 tier
  • T.H.D (1 kHz, Rated Power) < 0.03 % 4 ohms and 8 ohms
  • Signal to Noise Ratio (20Hz - 20kHz) <-100 dB
  • Damping Factor (8 ohms,400 Hz) > 300
  • Power Source 100~240 Vac, 50/60 Hz
  • Dimensions: (H x W x D) 5.1" x 18.9" x 18.9"
  • Weight: 83.3 lbs




Email Friend

Product Question
List Price: $1,199.99
Your Price: $795.00
