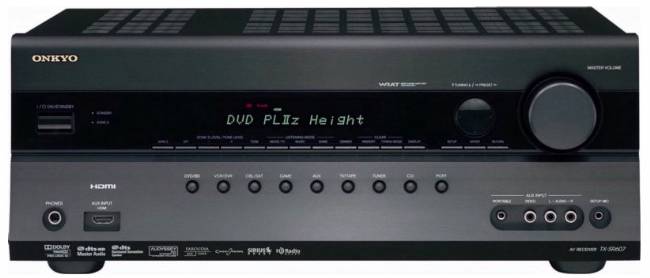

Onkyo TX-SR607 7.2-Channel Home Theater Receiver
Onkyo TX-SR607 7.2-Channel Home Theater Receiver
Onkyo TX-SR607 Receiver
  • Six 1080p capable HDMI inputs (5 rear/1 front)
  • PLIIz new surround format for higher dimension
  • Analog to HDMI video upconversion by Faroujda DCDi
  • WRAT technology and discrete amp construction for cleaner sound
  • TrueHD/DTS-HD decoding to support the latest Blu-ray technology
  • Optional iPod Dock / HDradio module via proprietary U.Port
Manufacturer's Description
A Stunning Balance of High-Definition Formats, Upscaling Video, and All-Round Versatility
The TX-SR607 raises the bar once again in the competitive world of mid-range home theater. With HDMI 1.3a inputs for up to six components, it’s ready to handle all your high-definition video and audio needs. Whether it’s a Blu-ray Disc player, a cable or satellite box, or a gaming console, your video signals will be traveling first class. Lower-resolution analog video signals, meanwhile, can be upscaled to 1080i and fine-tuned by Faroudja DCDi Edge™. HDMI version 1.3a also transports the master-quality HD audio formats, DTS-HD Master Audio™ and Dolby® TrueHD. The very latest Dolby technology, Dolby® Pro Logic® IIz, enhances the spatial sensation of music, movies, and video games by letting you incorporate front height channels. The TX-SR607 packs an array of convenient connectivity options, allowing you to incorporate HD Radio, iPod® and MP3 players, SIRIUS™ Satellite Radio, and more. Four specialized gaming modes, Audyssey room-correction technologies, and Zone 2 capability add the gloss to what is a phenomenal all-round package.

 General Features
 Color Black
 Surround Modes Dolby TrueHD, Dolby Pro Logic IIx, Dolby Digital, DTS-HD Master Audio
 D/A Converter 192kHz / 24-bit
 Frequency Response 5Hz-100kHz
 Remote Control Included
 Stereo Power Rating (watts) 90
 Surround Power Rating (watts) 110, 100
 Tuner FM, AM

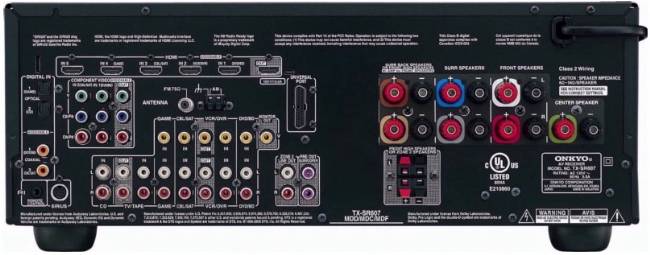

 Inputs / Outputs
 Command / Control Proprietary Plug
 HDMI (1) Rear Output, (5) Rear Input
 Optical (2) Rear Input
 Satellite Radio Sirius Satellite Radio Ready
 Analog Audio (3) Rear Output, (6) Rear Input
 Analog Audio / Video (1) Rear Output, (4) Rear Input
 Component Video (1) Rear Output, (2) Rear Input
 Headphone Jack Front Input
 Dimensions
 Weight (Pounds) 23.8
 Depth (Inches) 12.9
 Height (Inches) 6.9
 Width (Inches) 17.1
Detailed Specifications:
Amplifier
  • # Channels: 7.2

  • Power (8ohms 20-20kHz 0.08%) /Ch: 90W

  • Continuous 6ohms Rated

  • All Discrete Circuitry


  • Processing
  • DOLBY Decoder: DD Plus, TrueHD

  • DTS Decoder: DTS-HD Master Audio

  • Dolby PLIIz

  • ONKYO GAME Surround Modes

  • DTS Surround Sensation Headphone

  • Audyssey Dynamic EQ

  • Audyssey Dynamic Volume

  • Pure Mode

  • Music Optimizer

  • 192K/24 Bit DACs


  • Connectivity
  • Audio I/O: 7 / 2

  • Digital Audio IN (OPT/COAX): 2 / 2

  • Composite I/O: 5 / 1

  • Component Video I/O: 2 / 1

  • Front-Panel A/V : L / R / V

  • Front-Panel Portable input (stereo mini jack)

  • HDMI I/O: 5 + 1front / 1

  • HDMI Version: V1.3a Repeater

  • Analog To HDMI: UpConversion

  • 1080i Upscaling

  • Analog Pre-Outs: Dual Sub out

  • Powered Zone2

  • Zone 2 Line Out

  • iPod Ready: (optional UP-A1)

  • HD Radio Ready: (optional UP-HT1)

  • SIRIUS Radio Ready


  • Integration Access
  • ONKYO-RI System Control


  • Miscellaneous
  • Learning Remote

  • On Screen Remote Programming

  • Color-Coded Speaker Terminals

  • Auto Speaker Calibration W/Mic.: (Audyssey 2EQ)

  • OSD Out

  • Solid Aluminum Front

  • Warranty: 2 YEARS


  • Power Output
    Front L/R
  • 90 W + 90 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC)

  • 105 W + 105 W (8 ohms, 1 kHz, 0.7%, 2 channels driven, FTC)

  • 110 W + 110 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)


  • Center
  • 90 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC)

  • 105 W (8 ohms, 1 kHz, 0.7%, 2 channels driven, FTC)

  • 110 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)


  • Surround L/R
  • 90 W + 90 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC)

  • 105 W + 105 W (8 ohms, 1 kHz, 0.7%, 2 channels driven, FTC)

  • 110 W + 110 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)


  • Surround Back L/R
  • 90 W + 90 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC)

  • 105 W + 105 W (8 ohms, 1 kHz, 0.7%, 2 channels driven, FTC)

  • 110 W + 110 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)


  • Dynamic Power
  • 210 W (3 ohms, 1 ch)

  • 180 W (4 ohms, 1 ch)

  • 110 W (8 ohms, 1 ch)


  • THD (Total Harmonic Distortion): 0.08% (Rated power)

  • Damping Factor: 60 (Front, 1 kHz, 8 ohms)

  • Input Sensitivity and Impedance: 200 mV/47 k-ohms (Line)

  • Output Level and Impedance: 200 mV/2.2 k-ohms (Rec out)

  • Frequency Response: 5 Hz–100 kHz/+1 dB, -3 dB (Direct mode)

  • Tone Control: ±10 dB, 50 Hz (Bass), ±10 dB, 20 kHz (Treble)

  • Signal-to-Noise Ratio: 106 dB (Line, IHF-A)

  • Speaker Impedance: 6 ohms–16 ohms


  • Video Section
  • Input Sensitivity/Output Level and Impedance

  • Video: 1 Vp-p/75 ohms (Component), 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR), 1 Vp-p/75 ohms (Composite)

  • Component Video Frequency Response: 5 Hz–50 MHz (-3 dB)


  • Tuner Section
  • Tuning Frequency Range

  • FM: 87.5 MHz–107.9 MHz

  • AM: 530 kHz–1,710 kHz

  • FM/AM Preset Memory: 40 stations


  • General
  • Power Supply: AC 120 V, 60 Hz

  • Power Consumption: 5.5 A

  • Dimensions (W x H x D): 17 1/8" x 6 15/16" x 12 15/16", (435 x 174.3 x 374.7 mm)

  • Weight: 23.8 lbs. (10.8 kg)

    Onkyo Warranty Included:
    2 Years Parts / 2 Years Labor -Carry In Service
    Service available through authorized repair centers.

  •
