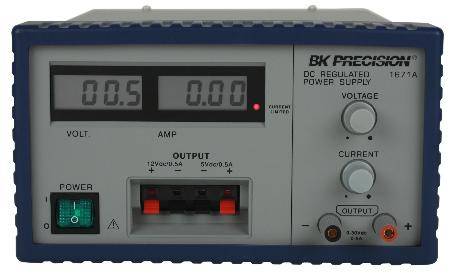

The 1671A is a 3-digit, triple output regulated DC power supply. It has been designed with course output voltage and current limiting controls. Bright, front panel mounted 3-1/2 digit LED auto-range meters provide 5.00 Amp readings and 30.0 Volt. The model 1671A also features a fixed 12V and 5V with the capability to output 500mA.

• One variable 0 to 30 VDC, 0 to 5 A variable section
• One 12 VDC fixed section
• One 5 VDC fixed section
• Ideal for general electronic servicing, school electronics labs, and powering up hobbyist's projects

Specifications:

Model #	1671A
Output voltage	Variable 0~30VDC
	Fixed 12VDC (+5%
	Fixed 5VDC (+5%)
Output current	0~5A
	0~500mA
	0~500mA
Metering display	2 digital 3 digit LCD
Ammeter range	0~999A
