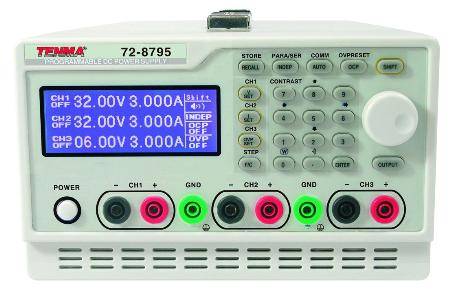

Electronics Gear- Electronics,Computer Sales and Service: Tenma Digital Triple Outlet Programmable Power Supply, Test Equipment, 72-8795

The Tenma programmable linear power supply fits into any budget. This unit features a 3 channel DC output of 0-32V (0-6V on third channel) up to 3 amps. Programmable sequences can be inputted directly on the unit, or with the included USB interface software. Built-in over voltage, over current, and over temperature protection protect the power supply and attached load.

High contrast LCD backlit display

Integrated collapsible handle

Binding posts accept banana plugs

Keypad for direct input

PC software for USB or Serial interface

Specifications

Variable output	0-32VDC x 2, 0-6VDC x1; 0-3A
Display Resolution	10 mV, 1mA (2mA rated current > 3A)
Load stability	=0.1%+10mV
Ripple & noise	= 3mV RMS
Setting time	1s~9999s
Time resolution	1s
Time function	Auto Step program run
Interface	RS-232, USB
Power requirements	110VAC, 60 Hz
Weight	22 lbs (10 kg)
Dimensions	8” x 13.5” x 5-1/2”
