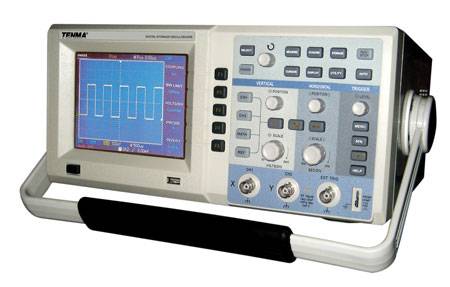

Dual Channel 100MHz Digital Storage Oscilloscope
Compact digital storage oscilloscope provides a cost effective combination of performance and ease of use in a highly portable and compact instrument. and are available with bandwidths from 25MHz to 200MHz.

Features:

Real time sampling rate of 500MS/s

Color LCD display

Edge, pulse and video triggering on channel CH1 and CH2

Rising and falling edge triggering

8 bit A/D converter, two channels sampling simultaneously

Separate USB host and device ports

RS-232 port

See attached owners manual for detailed features and specifications

Specifications:

Bandwidth: 100MHz

Real time sampling rate: 250MS/s each channel, 500MS/s both channels combined

Equivalent sampling rate: 25GS/s

Input

Input coupling: AC, DC or Ground

Input impedance: 1MΩ ±2%, 18±3pF

Probe attenuation: 1x, 10x, 100x, 1000x

Max input voltage: 400V (AC + DC peak, 10:1 attenuation)

Channel interval : =40:1

Channel time delay (typical): 150ps

Horizontal

Interpolation: Sine(x)/x

Records:

Depth: 25K each channel,

Length: 2 x 512K

Scan range (S/div): 5ns/div-50s/div

Vertical

Analog bandwidth: 100MHz

Selectable bandwidth limit: 20MHz

Trigger

Rise time: <3.5ns

Trigger sensitivity: DC ~ 10MHz: 0.5div, 10MHz ~ max bandwidth: 1div

Trigger level range: Internal: Display center ±10div, External ±1.6V

Pre trigger capability: Normal mode / scan mode, pre-trigger / delayed by time trigger

Pre-trigger depth is adjustable.

Release range: 100ns ~ 1.5s

Video triggering

Trigger sensitivity: Internal: 2div peak value, External: 400mV

Trigger type: Supports NTSC and PAL broadcast standards

Line range: 1 ~ 525 (NTSC), 1 ~ 625 (PAL)

General

Display: 5.7" color LCD

Resolution: 320 x 240 pixels

Dimensions: 5.9" (H) x 12.6" (W) x 11.5" (D)

Weight: 5.75lbs. (2.6KG)

Power Requirements: 100VAC ~ 240VAC, 45Hz ~ 440Hz, 30W
