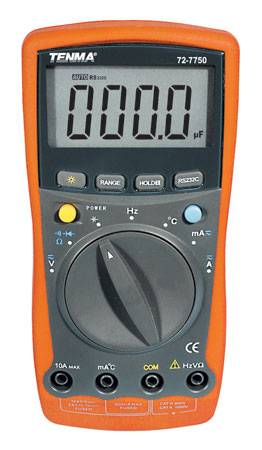

Tenma 6,000 Count 3-3/4 Digit Multimeter DMM w/RS-232
Tenma 6,000 Count 3-3/4 Digit Multimeter DMM w/RS-232

Autoranging Multimeter with RS-232
High accuracy, 5999 count multimeter offers a variety of ranges for every service application, plus an optically isolated RS-232 interface. Rugged overmolded housing stands up to the daily rigors of field service use, and large LCD display is easily read from several feet away. Measures AC/DC voltage, AC/DC current, resistance, capacitance, temperature and frequency.


Features:

  • 3 3/4 digit, 5999 count backlit display
  • Large 3/4" digits with numerous on–screen icons
  • Switchable auto/manual range
  • Diode check
  • Continuity buzzer
  • Data hold
  • Low battery display
  • Sleep mode
  • Included standard test leads, plus separate short leads for accurate capacitance checking
  • Includes 4' opto–coupled RS-232 cable with female DB9 connector and datalogging software
  • Comes complete with standard 9V battery and owners manual
  • Meets 600V CATIII, and 1000V CATII standards
  • Input impedance: 10MΩ
  • Dimensions: 6 3/4" (H) x 3 3/8" (W) x 1 1/2" (D)

    Ranges
  • DC Voltage: 600mV, 6V, 60V, 600V, 1000V
  • AC Voltage: 600mV, 6V, 60V, 600V, 1000V
  • DC Current: 60mA, 600mA, 10A
  • AC Current: 60mA, 600mA, 10A
  • Resistance : 600Ω, 6KΩ, 60KΩ, 600KΩ, 6MΩ, 60MΩ
  • Capacitance: 6nF, 60nF, 600nF, 6µF, 60µF, 600µF, 6mF
  • Temperature: -40ºC ~ 1000ºC
  • Frequency: 6KHz, 60KHz, 600KHz, 6MHz, 60MHz

    Accuracy
  • DC Voltage: ±(0.5%+3)
  • AC Voltage: ±(1% +2)
  • DC Current: ±(1.2%+3)
  • AC Current: ±(2%+5)
  • Resistance : ±(1%+2)
  • Capacitance: ±(3%+5)
  • Temperature: ±(1%+3)
  • Frequency: ±(0.05%+3)

  •
    Email Friend

    Product Question
    List Price: $149.99
    Your Price: $89.00
