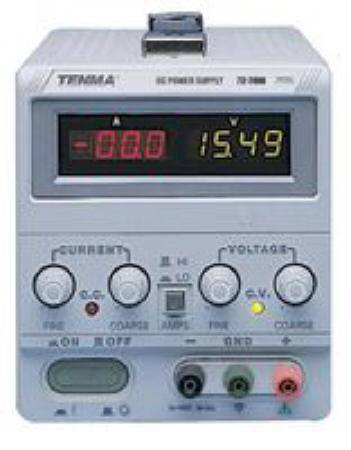

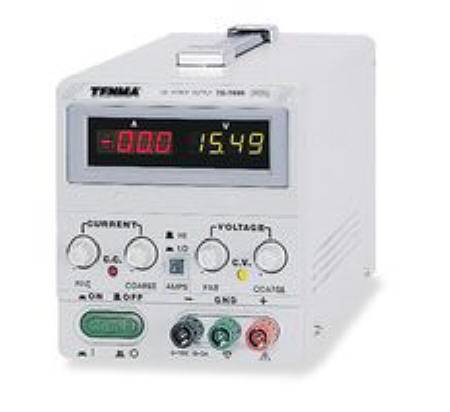

Precision adjustable supplies are ideal for testing, calibration and service applications where tight voltage and current regulation is critical. Coarse and fine adjustments for voltage and current enable precise control. Dual digital displays simultaneously show voltage and current to 0.1V (amp). Efficient switch mode design enables very high output current in a compact lightweight package that is a fraction of the size of traditional models.

Specifications
Voltage line/load regulation	<5mV
Ripple and noise	<5mV RMS
Recovery time	<5uS (50% load change, min load 500mA)
Current line/load regulation	3mA
Ripple current
72-7685	<30mA RMS
72-7690	<10mA RMS
72-7695	<5mA RMS
72-7700	<5mA RMS
72-7705	<3mA RMS
Insulation
Cassis and terminal	>20Mohm
Chassis and AC cord	>30Mohm
Power Requirements	115V/230VAC +/- 10%, 50Hz/60Hz
Dimensions//weight	5.7" (H) x 5.0" x 11.2" (D)/7.1lbs
