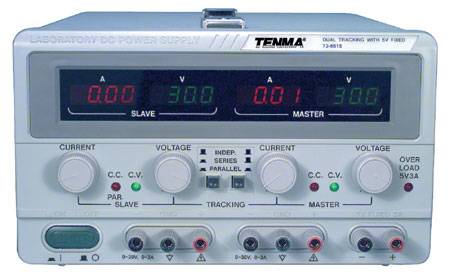

Triple Output Tracking Power Supply
Laboratory grade power supply provides adjustable 0~30VDC output, and 0~3A adjustable current limiting, on each of two isolated channels, plus an isolated fixed 5VDC output. Four independent three–digit LED displays simultaneously show output voltage and current for each variable channel.

Auto tracking

Selectable independent, series and parallel operation

Constant voltage and constant current operation

Overload and reverse polarity protection

Includes test leads and owners manual

Specifications:

Output voltage (each channel): 0~30VDC

Output current (each channel): 0~3A

Tracking series output: 0~60VDC, 0~3A

Tracking parallel output: 0~30VDC, 0~6A

Fixed output: 5V, 3A

Constant Voltage Mode (CH1, CH2)

Line Regulation: ≤0.01% +3mV

Load Regulation (≤3A): ≤0.01% +3mV

Load Regulation (>3A): ≤0.02% +5mV

Ripple & Noise: ≤1mV RMS (5Hz ~ 1MHz)

Constant Current Mode (CH1, CH2)

Line Regulation: ≤0.2% + 3mA

Load Regulation: ≤0.2% + 3mA

Ripple & Noise: ≤3mA RMS

Dimensions: 5¾" (H) x 10¼" (W) x 13¼" (D)

Unit weight: 24 lbs
