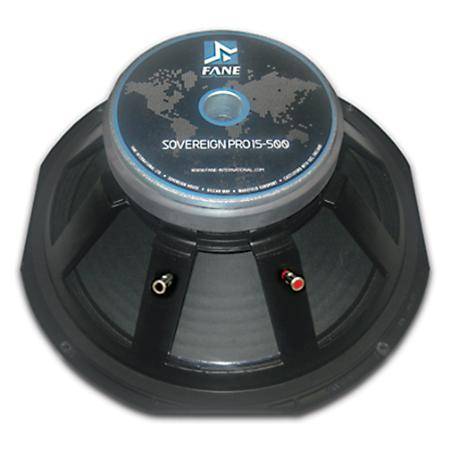

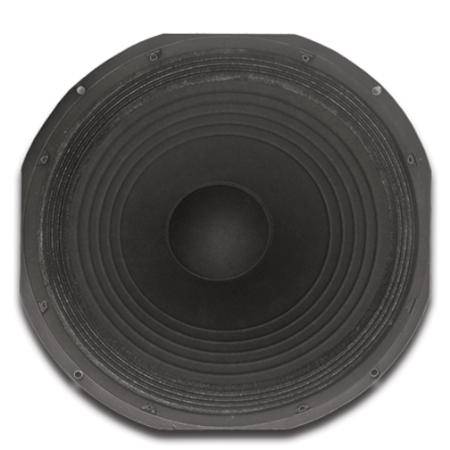

Sovereign Pro Series 15" Woofers
Massive 15" drivers are perfect for all sound reinforcement applications. Ideally suited for medium to large vented boxes, these also work well in a sealed box as a midbass or as a floor wedge.

Product Description

80 oz. vented magnet

3" aluminum voice coil on a fiberglass former

Paper cone with polyvinyl damped half-roll cloth surround

500W/1000W RMS/Peak Power Capacity

Model #PRO-15-500

Specifications:

Power capacity: 500W/1000W RMS/Peak

Frequency response: 40Hz ~ 3.5KHz

Fs: 40 Hz

Sensitivity: 99dB (W/M)

Re: 5.3 ohm

Qms: 8.1

Qes: 0.32

Qts: 0.3

Vas: 192 liters

Measurements:

Overall Diameter: 16"/406mm

Baffle Hole (Front Mount): 13.85"/352mm

Flange Height: .30"/7.8mm

Mounting Hole Quantity and Diameter: 4 x 7.1mm

Mounting Hole P.C.D.: 15.5”/393.7mm

Overall Height: 6.49"/165mm

Net Weight: 7.95kg
