Electronics Gear- Electronics,Computer Sales and Service: Fane International Sovereign Series 15 Inch Prosound Woofer 600W, Consumer Audio, 55-2870

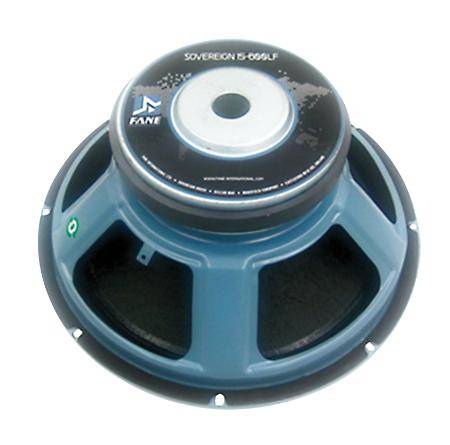

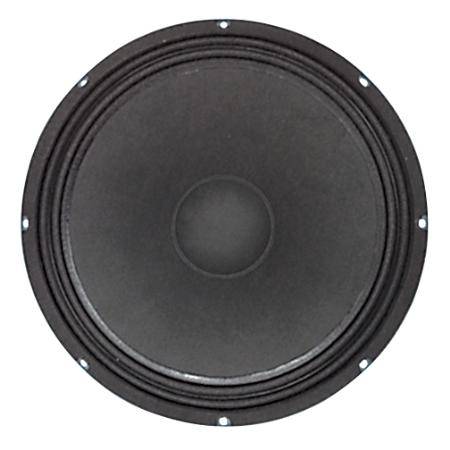

Sovereign Series 15" Prosound Woofer
High power sound reinforcement woofer provides outstanding SPL output and is ideally suited for medium to large vented boxes. Extended LF response makes this ideal as a subwoofer.

Product Description

95 oz. vented magnet

3" copper voice coil on a fiberglass former

Paper cone with treated cloth surround

600W/1200W RMS/Peak Power Capacity

Model #15-600LF

Specifications:

Power capacity: 600W/1200W RMS/Peak

Frequency response: 38Hz ~ 3.5KHz

Fs: 37 Hz

Sensitivity: 98dB (W/M)

Re: 6.2 ohm

Qms: 8.4

Qes: 0.4

Qts: 0.38

Vas: 205 liters

Measurements:

Overall Diameter: 15.19"/386mm

Baffle Hole (Front Mount): 13.85"/352mm

Flange Height: .35"/9mm

Mounting Hole Quantity and Diameter: 8 x 6.35mm

Mounting Hole P.C.D.: 14.56”/369.82mm

Overall Height: 6.65"/169mm

Net Weight: 8.15kg
