Overview
The Talos camera and cable tester provides a "one box" solution to setting up, adjusting, or diagnosing surveillance system hardware.
Highlights
- Built-in monitor and power supply to test cameras in place
- Displays video quality in IRE and mV
- Test operation of PTZ cameras
- UTP cable tester built-in
- Includes a rechargeable battery and charger
- Includes carrying case and connection cables

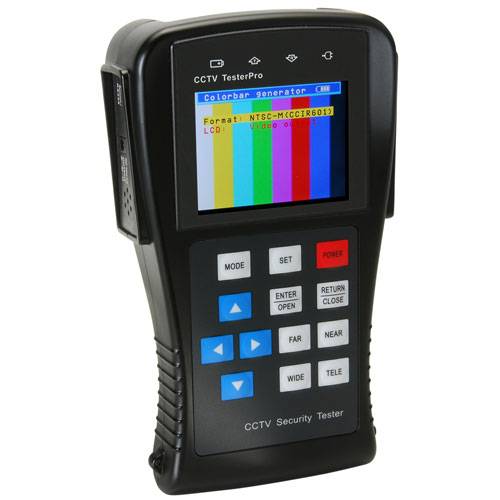

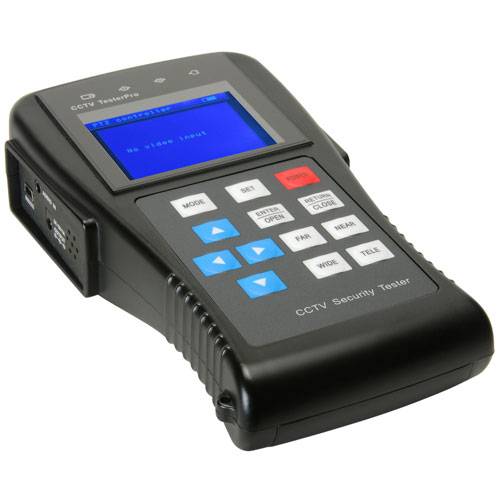

Talos CCTV Camera and Cable Tester with DC Output
Installation and service of surveillance systems just got easier. The Talos camera and cable tester is a multi-function tool designed specifically for the surveillance professional. 2-3/4" color LCD monitor and 12VDC, 1A power output make testing a camera in place possible. Check the quality of the video image along with video level in IRE or mV.
Test PTZ camera operation for proper pan left or right, tilt up or down, zoom in or out, focus near or far, and aperture open or close. Additionally, you can monitor data logs on the PTZ camera control output via RS232, RS422 and RS485 connections with baud rates ranging from 150 to 19200, and on communication protocols including Bosch, LG, Panasonic, Pelco P/D, Samsung, Sony, and others.

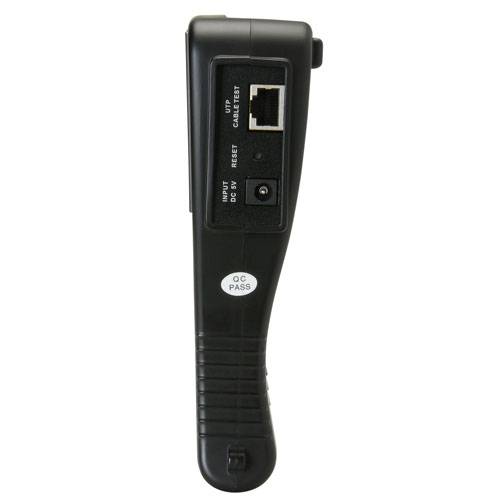

A built-in color-bar generator verifies video cable operability from the camera to the DVR is in tact. Also built-in is a UTP cable tester to verify continuity of a network cable. This tester displays: connection straight-through, connection crossed, or connections with open or shorted lines.

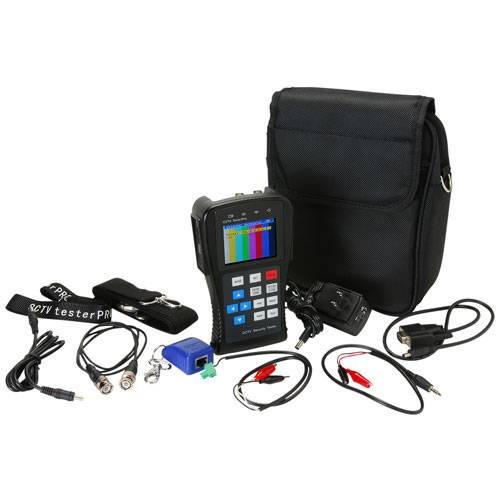

Includes: • Rechargeable battery and charger • BNC video cable • RS422/485 cable • RS232 serial cable • UTP remote • Audio input cable • Camera power cable • Test set neck strap • Carrying case with neck strap.
