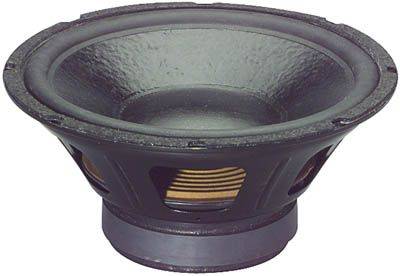

Electronics Gear- Electronics,Computer Sales and Service: Dayton ST305-8 12" Series II Woofer, Speaker Components (Drivers), 295-120

The Dayton Audio Series II heavy duty woofers feature natural sounding paper cones that are chemically treated for extra durability and long life. The combination of a large magnet structure, vented pole piece, bumped backplate, and large voice coil provides excellent power handling capability with high efficiency and very low distortion. Suspension system consists of a rubber surround and large flat spider for superior damping characteristics and outstanding transient response. Made in the U.S.A. Specifications: * Power handling: 275 watts RMS/380 watts max * Voice coil diameter: 2-1/2" * Le: 3.07 mH * Impedance: 8 ohms * Re: 6 ohms * Frequency response: 25-2,000 Hz * Magnet weight: 56 oz. * Fs: 30 Hz * SPL: 92 dB 1W/1m * Vas: 4.52 cu. ft. * Qms: 10.55 * Qes: .36 * Qts: .35 * Xmax: 8mm * Dimensions: Overall Diameter: 12", Cutout Diameter: 11", Mounting Depth: 6", Magnet Diameter: 6-1/8", Magnet Height: 1-7/8".
