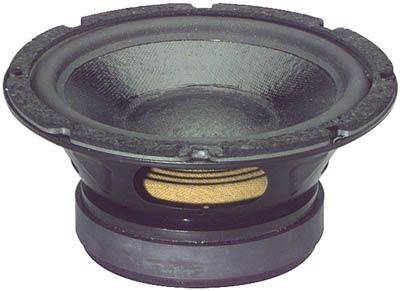

Electronics Gear- Electronics,Computer Sales and Service: Dayton ST210-8 8" Series II Woofer, Speaker Components (Drivers), 295-100

The Dayton Audio Heavy Duty woofers feature natural sounding paper cones that are chemically treated for extra durability and long life. The combination of a heavy magnet structure, vented pole piece, bumped backplate, and large voice coil provides excellent power handling capability with high efficiency and very low distortion. Unique suspension system consists of a rubber surround and large flat spider for superior damping characteristics and outstanding transient response. Made in the U.S.A. Specifications: * Power handling: 180 watts RMS/250 watts max * Voice coil diameter: 2" * Le: 1.30 mH * Impedance: 8 ohms * Re: 6.9 ohms * Frequency response: 45-3,000 Hz * Magnet weight: 38 oz. * Fs: 52 Hz * SPL: 90 dB 1W/1m * Vas: 0.87 cu. ft. * Qms: 4.99 * Qes: 0.54 * Qts: 0.49 * Xmax: 5.55mm * Dimensions: Overall Diameter: 8.25", Cutout Diameter: 6.95", Mounting Depth: 4", Magnet Diameter: 5.25", Magnet Height: 1.5".
