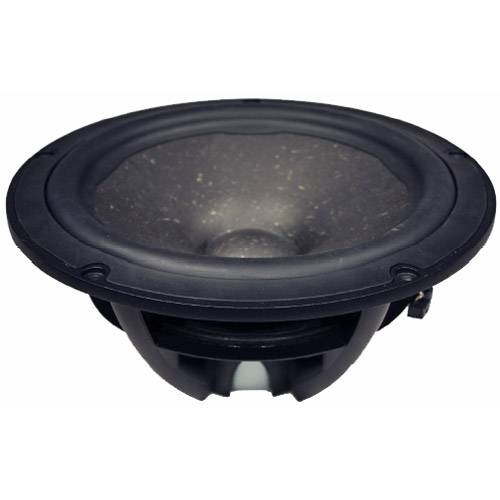

Vifa NE265W-04 10" Subwoofer
Vifa NE265W-04 10" Subwoofer

Vifa's NE Series full-range drivers feature an innovative sculpted, open cast aluminum basket design that minimizes internal acoustic reflections and acts as the neodymium motor's heatsink. An additional heatsink provides extra thermal dissipation. The cone is constructed of a coated natural wood fiber, with a butyl rubber surround designed by finite element analysis for linearity of performance. FEA techniques also contribute to the motor's copper cap, which reduces inductance. Specifications: *Power handling: 125 watts RMS/250 watts max *VCdia: 2" *Le: 0.16 mH *Impedance: 4 ohms *Re: 2.9 ohms *Frequency range: 20-2,000 Hz *Fs: 23 Hz *SPL: 88 2.83V/1m *Vas: 2.57 cu. ft. *Qms: 13.8 *Qes: 0.30 *Qts: 0.29 *Xmax: 9.05 mm *Dimensions: Overall diameter 10.45", Cutout diameter 9.25", Depth 6".

  • Cast aluminum frame acts as a heatsink
  • Sculpted design promotes cooling and reduces reflections
  • High-strength compact neodymium motor
  • Coated natural wood fiber cone with half-roll rubber surround
  • Pentacone cone technology for improved frequency response
  • Long-throw voice coil on titanium former
  • Copper pole piece cap for vastly reduced inductance
  • 4 ohm nominal impedance


Email Friend

Product Question
List Price: $249.99
Your Price: $168.58
Out of Stock
Notify Me when it arrives?
