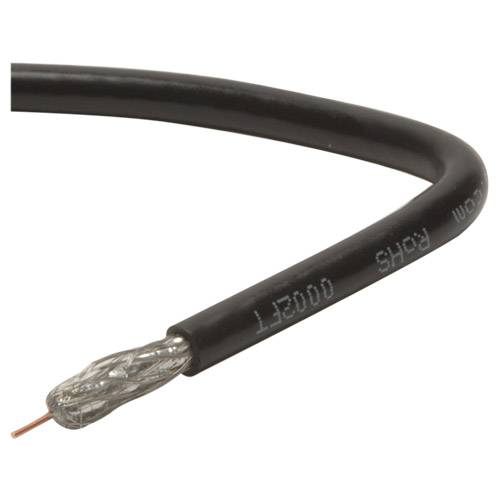

Dayton 3106BC0U RG-6/U Copper Clad Al Braid 1000 ft.
Dayton 3106BC0U RG-6/U Copper Clad Al Braid 1000 ft.
RG-6 is a staple of home, commercial, and industrial RF distribution systems. An 18 AWG copper-clad steel center conductor makes this RG-6/U cable strong and resilient to adverse outdoor conditions common with permanent digital cable, satellite, and antenna installations. Copper-clad steel also reduces cable kinks during cable pulls, saving installers time and money. A 60% coverage aluminum braid shield over 125% aluminized Mylar foil provides 100% shield against EM and RF interference. UL and C-UL listed; CMR rated for use within walls. In addition to being used as RF signal cable, this RG-6/U performs well enough to be used for custom length composite video, component video, and RCA audio cables. See the related items listing for easy-to-use connectors. Packaging was designed with ease of installation in mind. The spool-in-box payout system virtually eliminates performance robbing cable kinks during installation. If a traditional cable caddy is preferred, the spool can be quickly removed. Specifications: • Center conductor: 1.02 mm dia. copper-clad steel • Dielectric: 4.57 mm dia. foamed PE • Shield: 125% coverage aluminized Mylar foil and 60% coverage 80 x 0.12 mm dia. aluminum braid • Nominal impedance: 75 ohms • Velocity of propagation: 82% • Capacitance: 53.1 pF/meter • Nominal attenuation: 21.6 dB/100 meters 1 GHz • Overall diameter: 6.86 mm.
  • 18 AWG copper-clad steel center conductor offers increased cable strength
  • 60% coverage aluminum braid with 125% coverage Mylar foil
  • UL, C-UL listed and CMR rated
  • Spool-in-Box payout system
  • Sequential foot markers indicate cable remaining in the box

Email Friend

Product Question
List Price: $99.99
Your Price: $72.41
