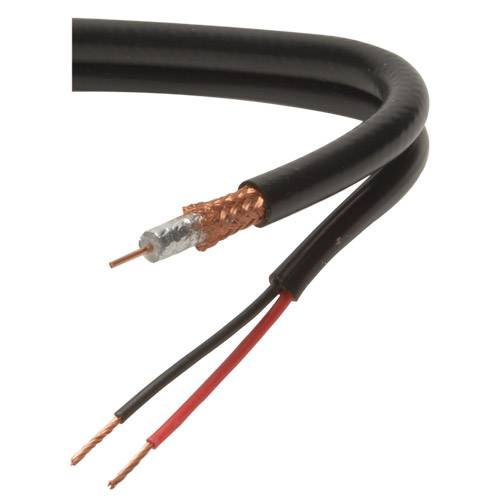

Dayton 3306AD0Y Siamese RG-6/U Solid Copper Cu Braid 500 ft.
Dayton 3306AD0Y Siamese RG-6/U Solid Copper Cu Braid 500 ft.
CCTV camera installations pose unique installation challenges. The solid copper center conductor within this RG-6/U cable is ideally suited for high resolution surveillance cameras. A bare copper braid provides 95% coverage and provides an effective path to transmit RS-422/485 and other camera control protocols, while a 125% overlapped Mylar foil bonded to the dielectric provides 100% shield protection from EM and RF interference. For 12 VDC and 24 VAC remote camera power, a two-conductor 18 AWG power cable is attached in a Siamese construction—allowing you to essentially pull two cables at one time. UL listed and CMR rated for use within walls. Packaging has been designed for the installer. The spool-in-box payout system virtually eliminates performance robbing cable kinks during installation. Those that prefer the use of a wire rack can be quickly remove and "rack-up" the internal spool. RG-6/U Specifications: • Center conductor: 1.02 mm dia. solid copper • Dielectric: 4.57 mm dia. foamed PE • Shield: 125% coverage aluminized Mylar foil and 95% coverage 168 x 0.12 mm dia. copper braid • Nominal impedance: 75 ohms • Velocity of propagation: 82% • Capacitance: 53.1 pF/meter • Nominal attenuation: 21.6 dB/100 meters  1 GHz • Overall diameter: 6.86 mm. Power Cable Specifications: • Construction: 7 x 0.38 mm copper conductors (per wire) • Wire insulation: 0.43 mm SR-PVC • Overall diameter: 5.40 mm.
  • 18 AWG solid copper center conductor
  • 95% coverage bare copper braid
  • 125% coverage Mylar foil
  • Siamese 18 AWG 2-conductor power for single run installation
  • Spool-in-Box payout system with sequential foot markers to indicate cable remaining in the box

    DISCONTINUED ITEM, DISPLAYED FOR REFERENCE PURPOSES ONLY.

Email Friend

Product Question
List Price: $199.99
Your Price: $135.12
Out of Stock
Notify Me when it arrives?
