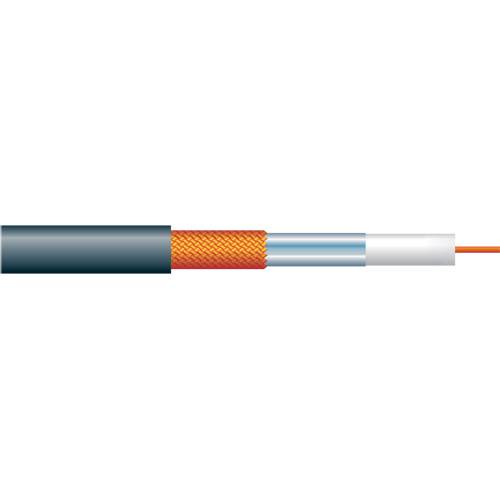

Electronics Gear- Electronics,Computer Sales and Service: Dayton 3106AD0E RG-6/U Solid Copper 95% Cu Braid 250 ft., Wire, Cable & Connectors, 101-103

The added capacity of HDTV channels available from digital cable and satellite makes it necessary to reconsider the type of coaxial cable used for installations. Poor quality cable causes a higher DC voltage drop along the cable length. This limits channel bandwidth resulting in a less than predictable performance potentially creating service calls. A solid copper center conductor, within Dayton Audio's RG-6/U cable, is the perfect signal path for high performance signals transmitted and received by satellite and cable receivers. The bare copper braid provides 95% coverage and is also ideally suited for surveillance cameras that transmit data over the shield. Aluminized Mylar foil is bonded to the dielectric (125% coverage) to provide 100% shield protection from EM and RF interference. UL and C-UL listed; CMR rated for use within walls. Additionally, Dayton Audio's RG-6/U can be used to make high performance custom length composite, component, stereo audio, and subwoofer patch cables when terminated with Dayton Audio's RCAX-AU audiophile-grade RCA connectors. Specifications: • Center conductor: 1.02 mm dia. solid copper • Dielectric: 4.57 mm dia. foamed PE • Shield: 125% coverage aluminized Mylar foil and 95% coverage 168 x 0.12 mm dia. copper braid • Nominal impedance: 75 ohms • Velocity of propagation: 82% • Capacitance: 53.1 pF/meter • Nominal attenuation: 21.6 dB/100 meters 1 GHz • Overall diameter: 6.86 mm.

18 AWG solid copper center conductor
95% coverage bare copper braid
125% coverage Mylar foil
UL, C-UL listed and CMR rated
Sequential foot markers indicate cable remaining in the box
