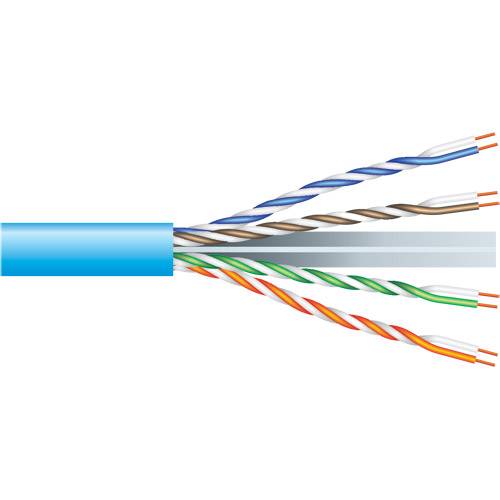

Electronics Gear- Electronics,Computer Sales and Service: Dayton 1066Y Cat 6 CMR Solid Cond 500 MHz Blue 500 ft., Wire, Cable & Connectors, 101-037

Category 6 cable provides a high-speed pathway for gigabit Ethernet performance. Perfectly suited for applications including computer network, telephone, surveillance, video distribution, audio and infrared system control. Dayton Audio Cat 6 cable has been designed, manufactured and verified to meet and exceed published standards for computer network installations. Features include a superior 550 MHz bandwidth compared to standard 250 MHz Cat 6 cable, and a thick central spline that separates the individual pairs decreasing noise and crosstalk. UL and NEC requirements have been met for vertical flame tests making this cable riser rated for in-wall and in-ceiling installations. Packaging has been designed around the Spool-in-Box payout system. This enables installers to save time (and money) by virtually eliminating performance robbing cable kinks, common with other manufacturers' bulk Cat 6 cable, during installation. Alternatively, the internal spool may be removed to "rack-up" on a traditional cable caddy. Specifications: • Individual conductors: 23 AWG (0.57 mm dia.) solid copper • Nominal impedance: 100 ohms (±15 ohms) • DCR: 6.9 ohms/100 meters • Capacitance: 5000 pF/100 meters • Attenuation 550 MHz: 52.8 dB • Overall cable diameter: 6.10 mm (± 0.10 mm).

Rated to 550 MHz—exceeding the performance of standard 250 MHz Cat 6
Central spline decreases noise and crosstalk
Verified EIA/TIA 568B.2 and 10BASE-T, 100BASE-TX, 1000BASE-T, and 10GBASE-T compliant
Sequential foot mark every two feet, shows cable remaining at a glance
Spool-in-Box payout system virtually eliminates cable kinks
